REPLACEMENT FOR PARAGON 8141-00 ELECTRO-MECHANICAL TIMER PRECISION 6141-0

img{max-width:100%}S8000 Series Replaces Paragon 8141-00 Commercial Defrost Controls
SUPCO S814100
Identical to Paragon 8141-00

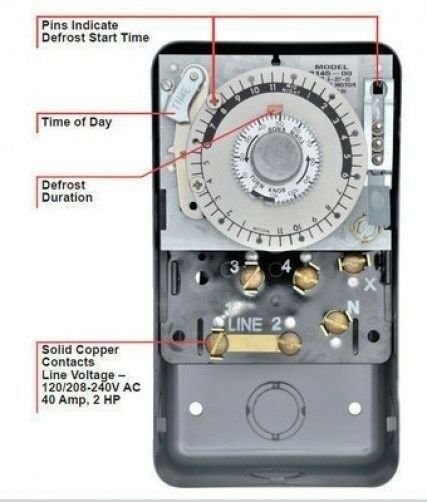

• Heavy-duty synchronous motor
• Adjustable defrost frequency up to six (6) times
per day
• Adjustable cycle duration from 4 to 110 minutes
• Heavy-duty steel case

Designed to meet a wide variety of customer requirements. These electro-mechanical controls
are used on many different types of commercial refrigeration equipment, including walk in
boxes, reach in boxes, refrigerated cases and condensing units.
ELECTRO-MECHANICAL TIMER,TIME INITIATED, TEMPERATURE OR PRESSURE TERMINATED120V, SWITCHING 1 N.O., 2 N.C., 40AMP, 2HP, WITH 4TRIPPER PINSDEFROST FREQUENCY: 1 TO 6 CYCLES / DAYADJUSTABLE DEFROST DURATION, 4 TO 110 MIN, IN 2 MININCREMENTS.7-11/16" H X 4-7/16" W X 3-13/16" D3.75 LBSTRUE T-49, TWT-67F,GDIM-60, T-(12F,12FG,35F,49F,49F-4,49FG,72F),TS-(49F,72F).VICTORY # 50197302 MODEL VF-2


Replaces the following Manufacturer's Products
OEM Numbers are used for reference only, .



OEM Names
OEM #

BEVERAGE AIR
502-115A

TRAULSEN
324-21993-00

TRUE
831993

VICTORY
50197302

BEVERAGE AIR
502115A

PARAGON
8141-00

TRAULSEN
21993
Link to spec sheet
http://www.supco.com/images/pdfs/Commercial%20Defrost%20Controls.pdf
* Inages might not be the exact model. they are for reference only
