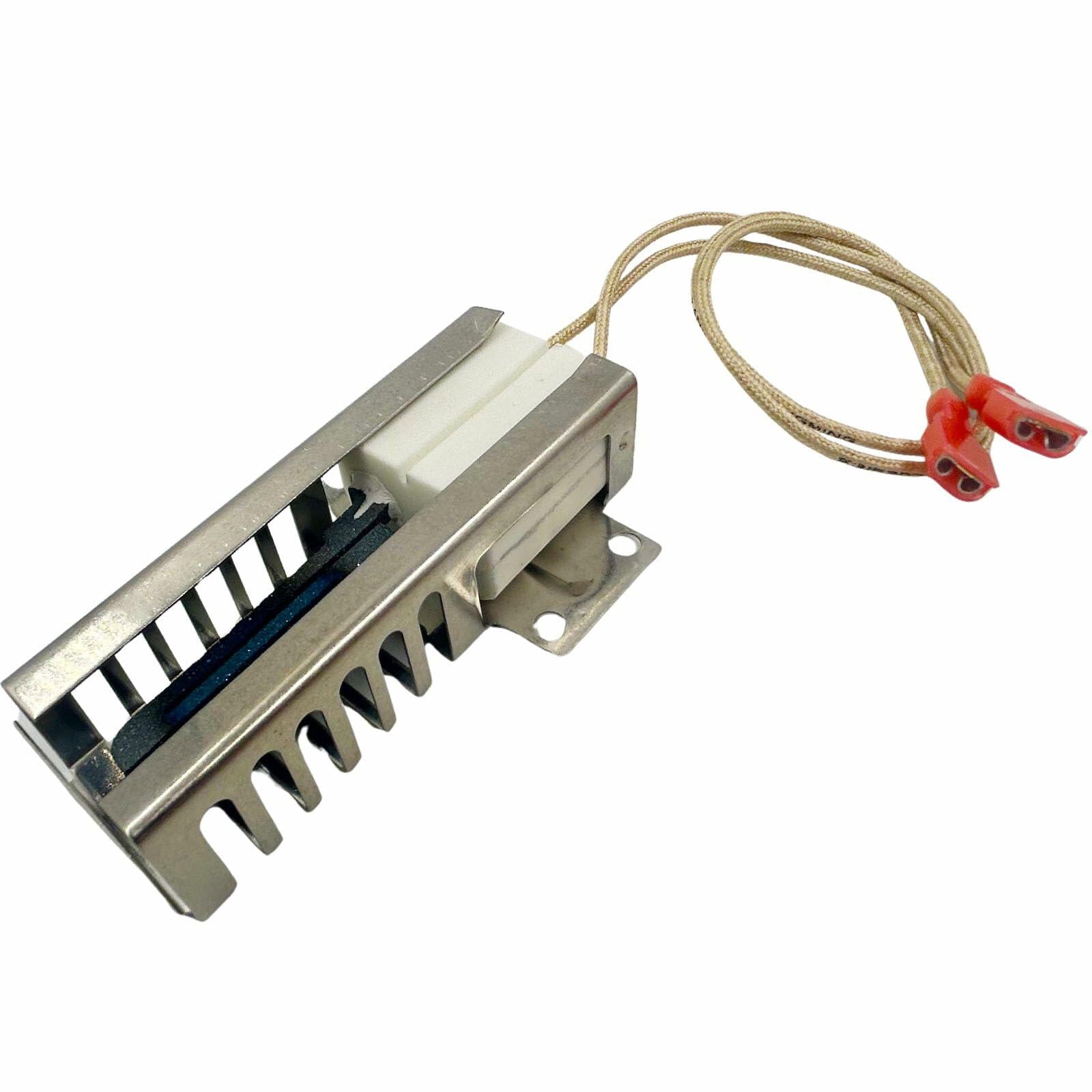

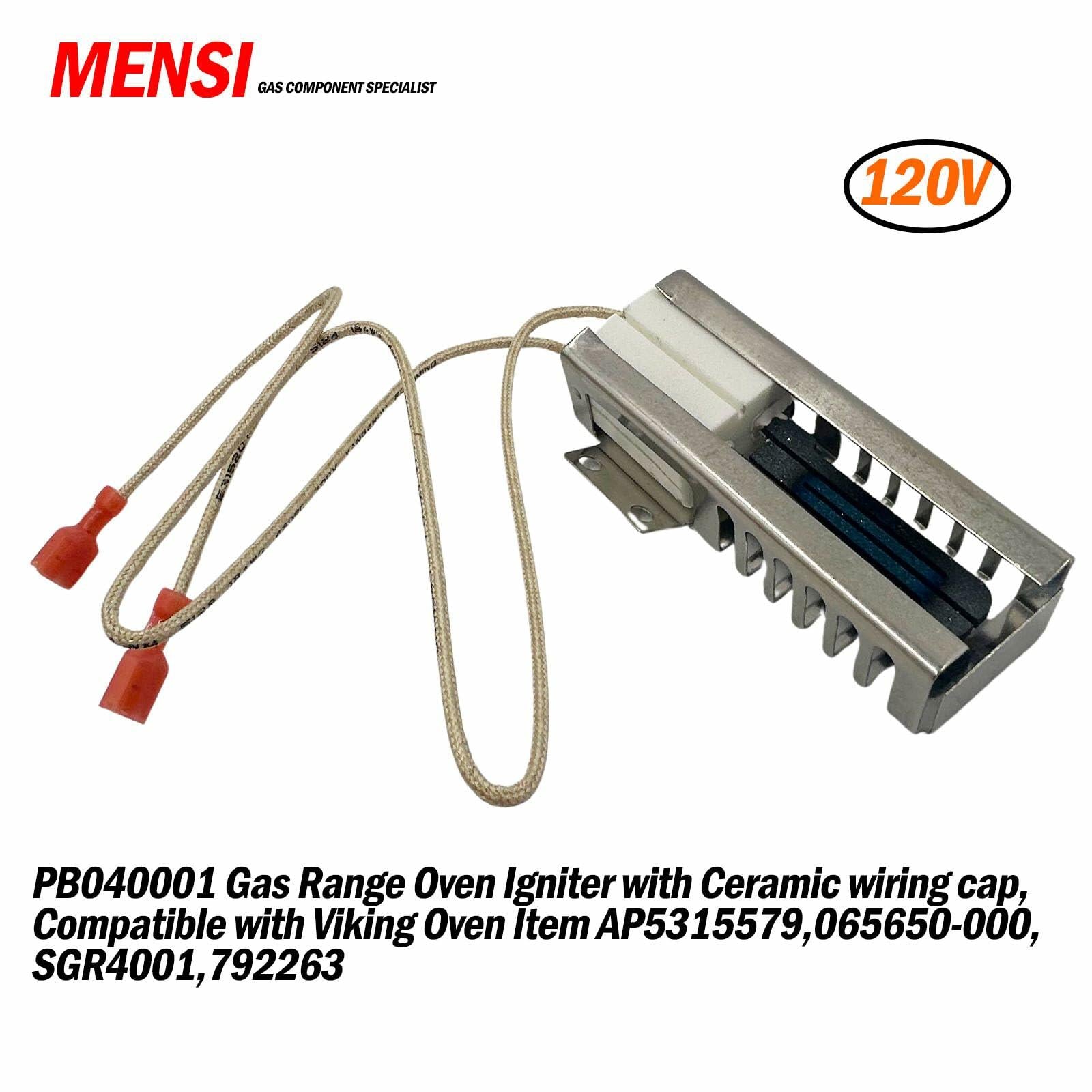

SUPCO SGR4001 Gas Range Oven Igniter with Ceramic wiring cap,Compatible with Viking Oven Item AP5315579,065650-000,SGR4001,792263 Part, and Universal for GE, Electrolux, Whirlpool, and Brown

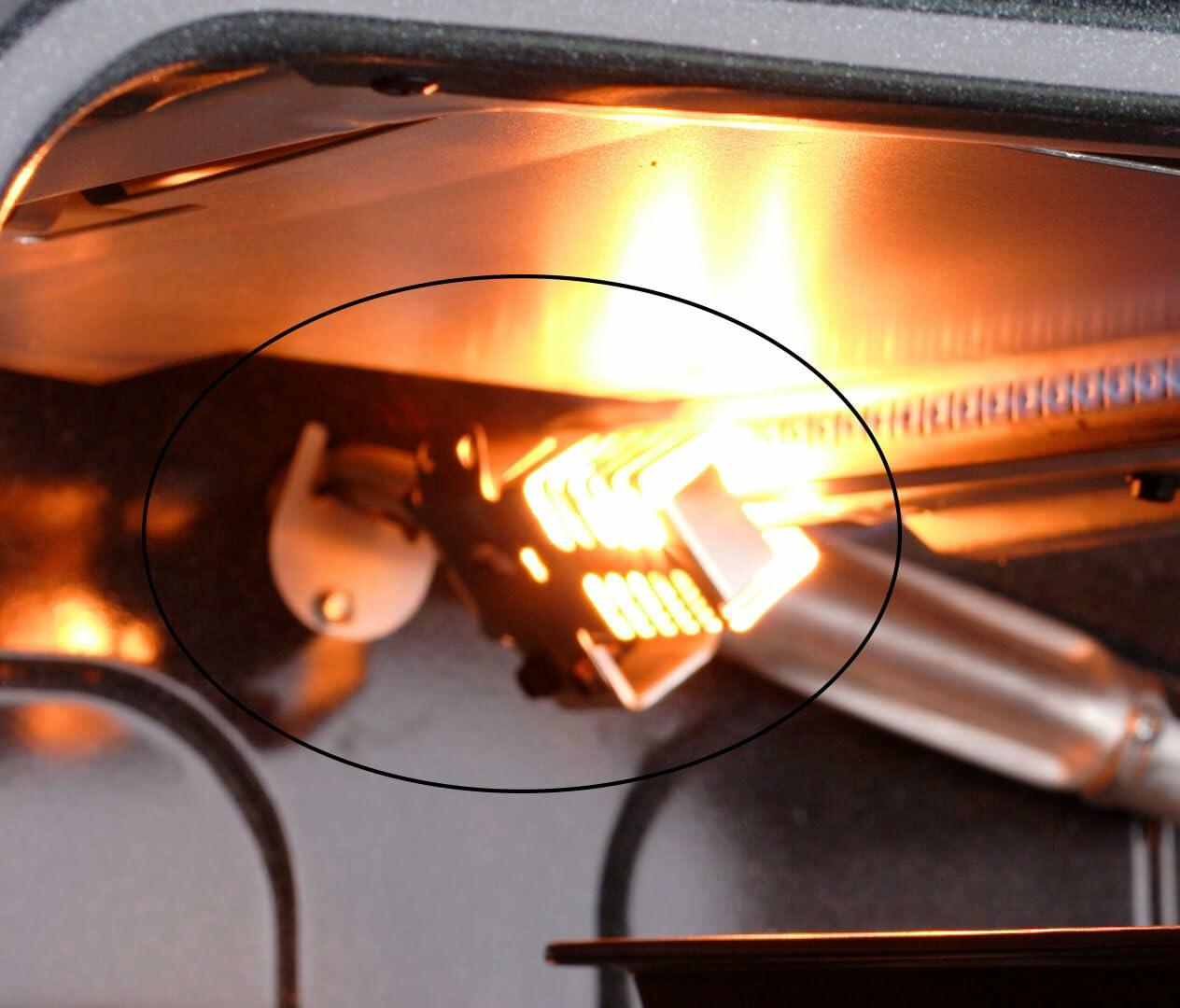

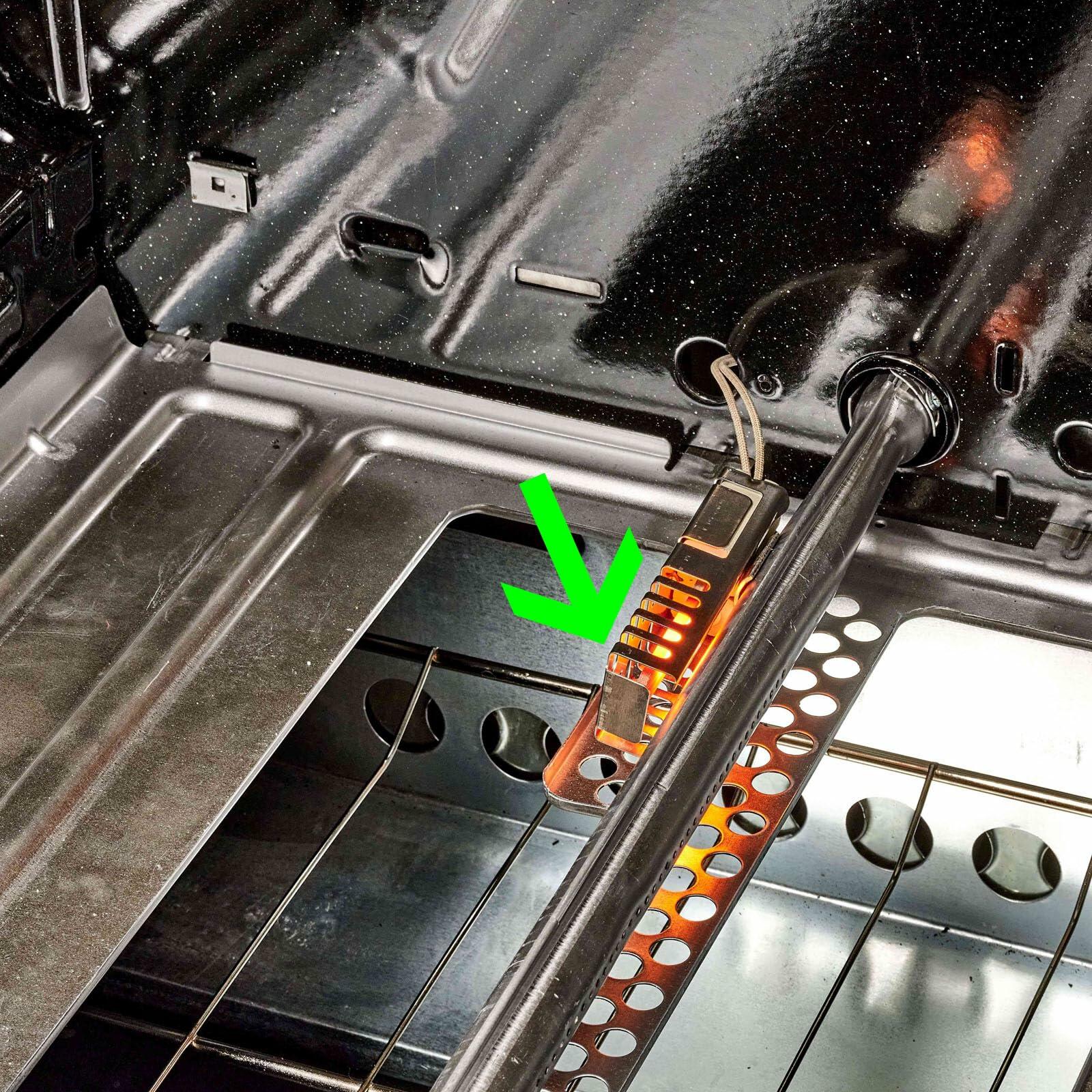

The bake and broil igniters are mounted to the bake and broil burner and ignite the gas flowing into the burner. During a bake or broil operation, current flows through the igniter, gas valve and thermostat to neutral. As the igniter starts heating and glowing ,its internal resistance decreases allowing more current to flow through the bake or broil circuit. When the circuit current reaches approximately 3.2 to 3.7amps, the bi-metal arm in the gas valve flexes, opening the valve, allowing gas to flow to the burner when it is ignited by the glowing ignite. The ignite will glow anytime the bake or broil burners are in operation and cycle on and off with the thermostat cycling contacts. The igniter can be checked for continuity by using an ohmmeter set to the Rx10 range. Remove the igniter from the burner and disconnect the igniter wiring. Attach one meter lead to each igniter wire. A resistance of several hundred ohms may be indicated and may vary with each igniter. The main purpose of this test is to see if the igniter is open internally. The igniter may still be defective even though continuity is indicated and it glows when the oven is set for a bake, broil or clean function. A more exact test is to measure the igniter current with the oven operating. An ammeter should be inserted in series with one lead of the ignite or any probe attached to the of the igniter will check the amount of current flowing through the igniter circuit. With the oven turned on and the igniter glowing red, a current reading of approximately 3.2 to 3.7 amps should be indicated.

FEATURES

• The bake and broil igniters play a crucial role in igniting gas burners by regulating current flow, which ultimately opens the gas valve when the current reaches a specific threshold. Proper testing of the igniter's continuity and current is essential to ensure its functionality and the effective operation of the oven.

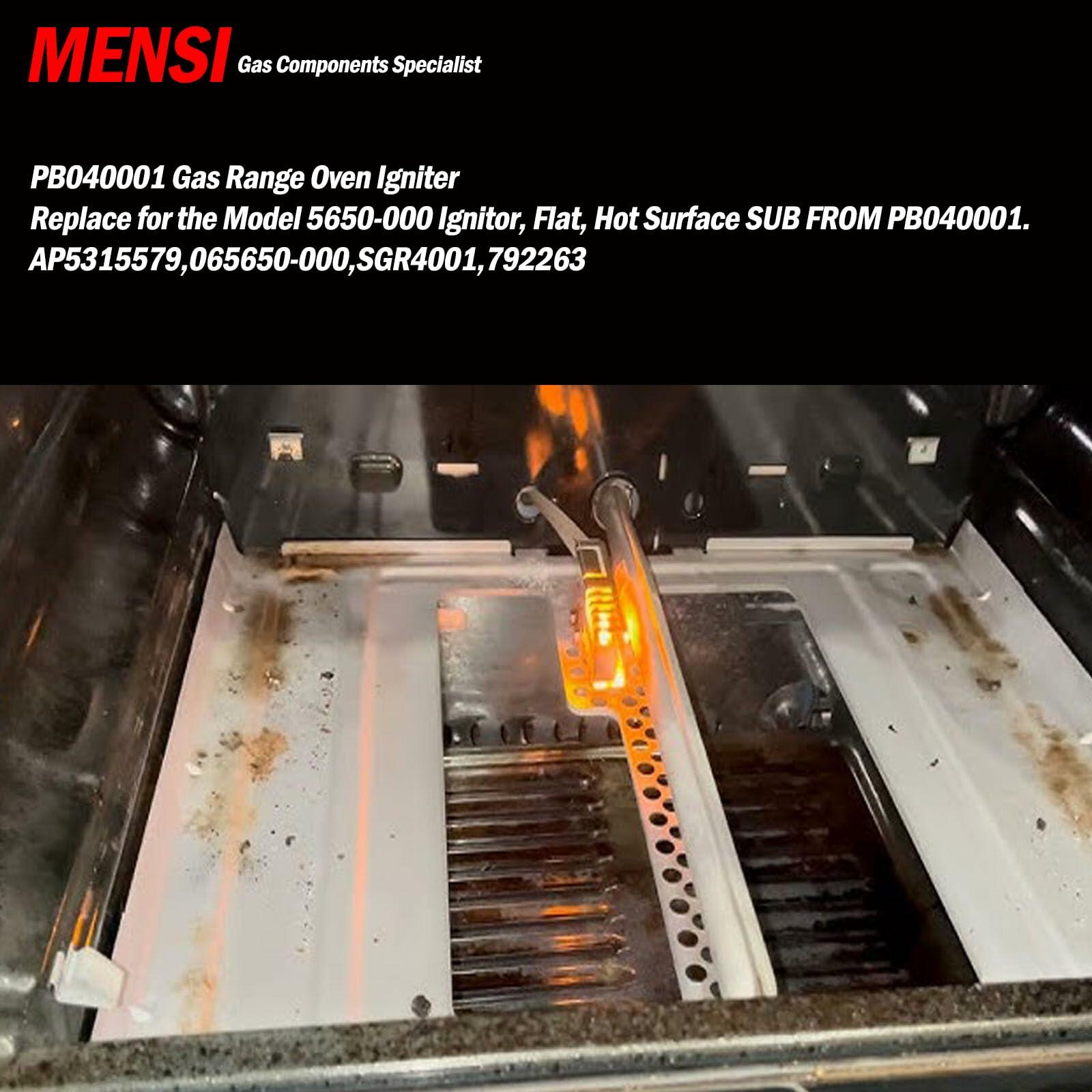

• Replace for the Model 5650-000 Ignitor, Flat, Hot Surface SUB FROM PB040001.AP5315579,065650-000,SGR4001,792263. Also we designed with universal bracket for Universal for GE, Electrolux, Whirlpool, and Brown MODELS, replace code:ERIG9998
• Models that Have Used This Part CVDSC485-4GAFTER08-11-06 CVDSC485-4GQAFTER08-11-06 CVDSC485-6G EVGIC305 EVGIC365 CVDSC365-4G EVGIC485 EVGRT360 EVGRT480 EVGRT600 LVDSC365-4G LVDSC485-4GAFTER08-11-06 LVDSC485-4GQAFTER08-11-06 LVDSC485-6G VDSC365 VDSC365-4G VDSC367 VDSC367-4GAFTER09-01-06 VDSC485 VDSC485-4GAFTER08-11-06 VDSC485-4GQAFTER08-11-06 VDSC485-6G VDSC485C-6G VDSC487 VDSC487-4GAFTER06-22-06 VDSC487-4GQAFTER06-22-06 VDSC487-6GAFTER06-14-06 VGGT240 VGIC245 VGIC245G VGIC245K VGIC245Q VGIC305 VGIC307 VGIC365 VGIC367 VGIC367 VGIC367 VGIC485 VGIC487 VGIS300 VGIS360 VGIS480
• More Models: VGRC365 VGRC485 VGRC605 VGRT360 VGRT360-4G VGRT360-4GAFTER07-09-07 VGRT362 VGRT362-4GAFTER07-09-07 VGRT420 RANGE TOP VGRT421 RANGE TOP VGRT421-4GAFTER07-09-07 VGRT480 VGRT4804G VGRT480-4GAFTER07-09-07 VGRT480-4GQAFTER07-09-07 VGRT480-6G VGRT480-6GAFTER07-09-07 VGRT482 VGRT482-4GAFTER07-09-07 VGRT482-4GQ VGRT482-4GQAFTER07-09-07 VGRT482-6GAFTER07-09-07 VGRT600 VGRT600-6GAFTER07-09-07 VGRT600-6GQAFTER07-09-07 VGR-VCM-VRT VGSC300 VGSC305 VGSC366 VGSC367 VGSC367 VGSC486 VGSC487-4G VGSC487-4GQ VGSC487-6G VGSO165 VGSO166 VGSS300 VGSS360 VGSS480

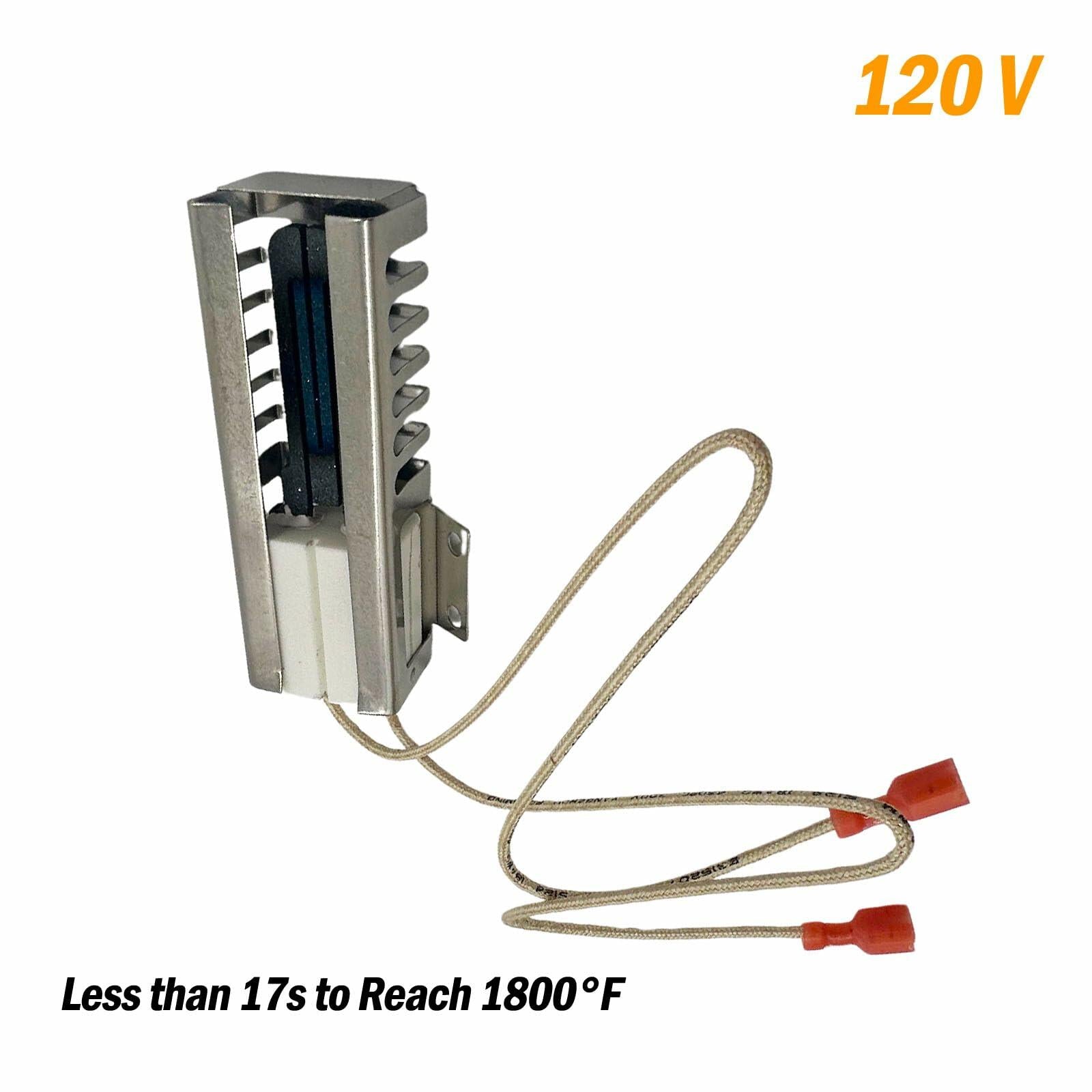

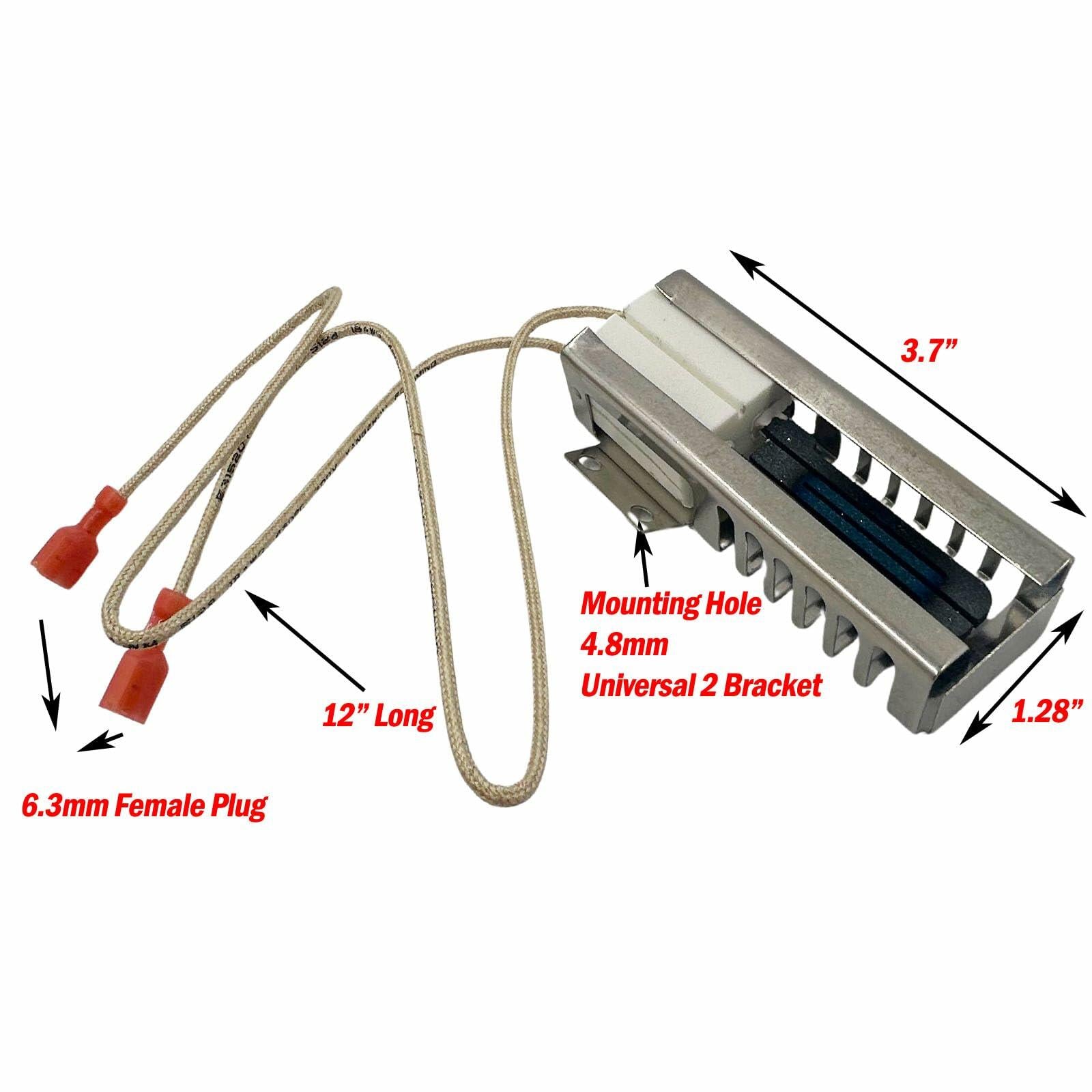

• Technical Data: Technical specification: 1.Steady State Current To be 3.2 to 3.7Amps @110-120 VAC 2.Time to reach 1800F<17 Seconds at 115 VAC +5.0 VAC.And 75 "F+10Ambient. 3.Cold Resistance:40 to 450 0hms at75 F+10F 4.The "L"of the wire is between 50mm and 1200mm. 5.Tolerance unless noted+2.0mm.
• This Igniter is compatible for Viking Glow Bar Ignition Systems.If you need to replace this Ignitor for the Bake function, we highly recommend replacing BOTH Bake Ignitors at the same time, never solo replace. It is also recommended in general to change BOTH Bake Ignitors every 3 - 5 years for BEST performance.
• CSA Certified Unit, 246721 is Master Contract No. Certification Number: 2166273.IG9998 Universal Gas Range Oven Igniter ignites to heat a gas oven. You can hear the flames ignite when the oven is initially turned on.
