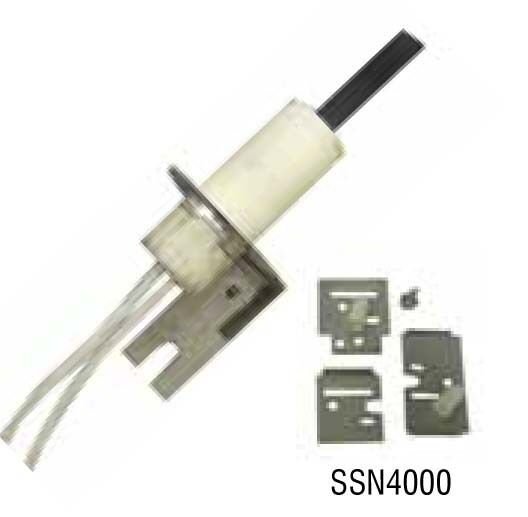

Supco SSN4000 Silicon Nitride Universal Furnace Ignitor Kit 120V

Supco SSN4000 Silicon Nitride Mini Universal Furnace Igniter 120VThe SSN Series provide replacements for hundreds of OEM igniters and offer the ultimate in durability and cycle life.Features/Benefits

Miniature design
Life rated to 200,000 cycles
Silicon Nitride technology for strong, durable operation and performance
Easy installation: kits include igniter, mounting brackets, hardware, instructions & cross reference
Universal replacements, reduces SKU’s
Replaces hundreds of OEM & competitors igniters
Longer igniter life (non-porous construction)
Low energy consumption uses half the power of Silicon Carbide igniters
Superior gas lighting ability, faster time to temperature response than Silicon Carbide igniters
No need for power supply module
3 year warranty
Applications(Various types of gas fired equipment)

Furnaces
Boilers
Unit Heaters
Water Heaters
Pool Heaters
Note: Silicon Nitride HSI igniters cannot be used in direct sense applicationsSpecificationsOperating Voltage 115 VAC Min 102-132 VACTime To Temperature 1800F (982C) <10 Seconds @                                   115 VAC & 75F +/- 10F AmbientSteady Temperature 2366F (1297C)Cold Resistance 46 Ohms @ 75f +/- 10FSteady Current .53Amps @ 115 VACHigh Temperature Wire Leads 6” 20 AWGLife Cycles >200,000SSN4000 Cross References



OEM
OEM P/N

Amana
10735002


10755002


B138196P01


B144676P02


B340039P01


B144676P01

American Standard
IGN0030

Arcoaire
See ICP

Armstrong
383322B001

Barnett Brass
661924


661926


661927


661928

Carrier
LH33ZS001A


LH33ZS002


LH33ZS003


LH33ZS004

Clare Bros
C238


C238-1


C242

Coleman/Evcon
14740511


14740512

Detroit/Brant Radiant
201D

DMO/Olsen ECR Ind
26789


20834

Dornback
271w

Ducane
20015201

Enerco Tech
10399

EZ Flow
62374

GE/Hot Point
WG37X11


WG37X34

Giant PV
526000125


FC067


626000025

GMO
20834

Goodman/Janitrol
B1193939


B11726-06


B1401009

Grimsby Stove
ZCO-350

John Woods/GSW PV
86483


71082

HB Smith
50018


1148245


9050


101344

Heatmaker
2400-048


2400-286


2600-359


3079-100


9330-102

Hupp Ind.
9050

ICP/HeilComfortmaker/ArcoaireTempstar/KeepriteSnyder General
1009980


1096048


1009604


1001344


1148145


1096047


1380654


1380672


1148245

Integra
6905332


3260618

Johnstone
L37-698


L37-699


L37-700


L37-812


L37-814


L37-815


L37-816


L40-765

LB White Co
120-07549

Lennox
33J3701


96P01


36N77


98P77


98P78

Majestic
75-92-104


75-92-105

Metzger
201N


201W

Mor Flo
3200618

Nordyne/TappanFrigidaire/PhilcoIntertherm/Miller
903758


105141000


RH622286893


632-0770


632-0880


632245-0


902661


902694


903758


632-3811


632-3540

Norton
101M


201D


201K


201L


201M


201P


201W


271M


271N


271P


271R


271RS


271W


201A


271A


201R


201


271


271NM

Raypack
50015


600915

Rheem
62-22441-01


62-22668-93


62-212868-82


62-22868-02


90434300

Roberts Gordon
90436600

Robertshaw/Uniline
41-402


41-403


41-404


41-405


41-407


41-408


41-409


41-410


41-4090


41-402N


41-403N


41-404N


41-405N


41-407N


41-408N


41-409N


41-410N


41-412N

Starlite
11120-100-1402


11120-100-1403


11120-100-1405


11120-100-1408


11120-100-1409

Surface Igniter
FC007


FC024


FC035


FC046


FC050


FC051


FC055

Superior Fireplace
94851

Temp Controls
9302-094

Trane
3400339P01


B340039P01


B12996P01


B144676P01


B144676P02


B138196P01


IGN21


IGN26


IGN28


IGN30


IGN34


IGN23

Trianco Heatmaker
2600-359

Viessmann
9302-093


9302-094

Wayne Home Equipment
62821-001


62821-002

Weil McLain
29074


511-330-139


511-330-193


511-330-190

Whirlpool
99794323


99794328

White LB Co
120-07549

White Rodgers
767A-301


767A-303


767A-306


767A-309


767A-350


767A-352


767A-353


767A-354


767A-356


767A-364


767A-365


767A-366


767A-370


767A-371


767A-372

Williamson
9050

York
025-32626-000


473-12509-001


373-09154-700


025-27774-000


025-29043-000


025-29050-000


025-27766-000


025-30277-000


025-32638-002


025-32625-000


025-31801-000


373-05342-700


025-27766-000
