Thermocouple replacement for Desa LP Heater 098514-01 098514-02

img{max-width:100%}

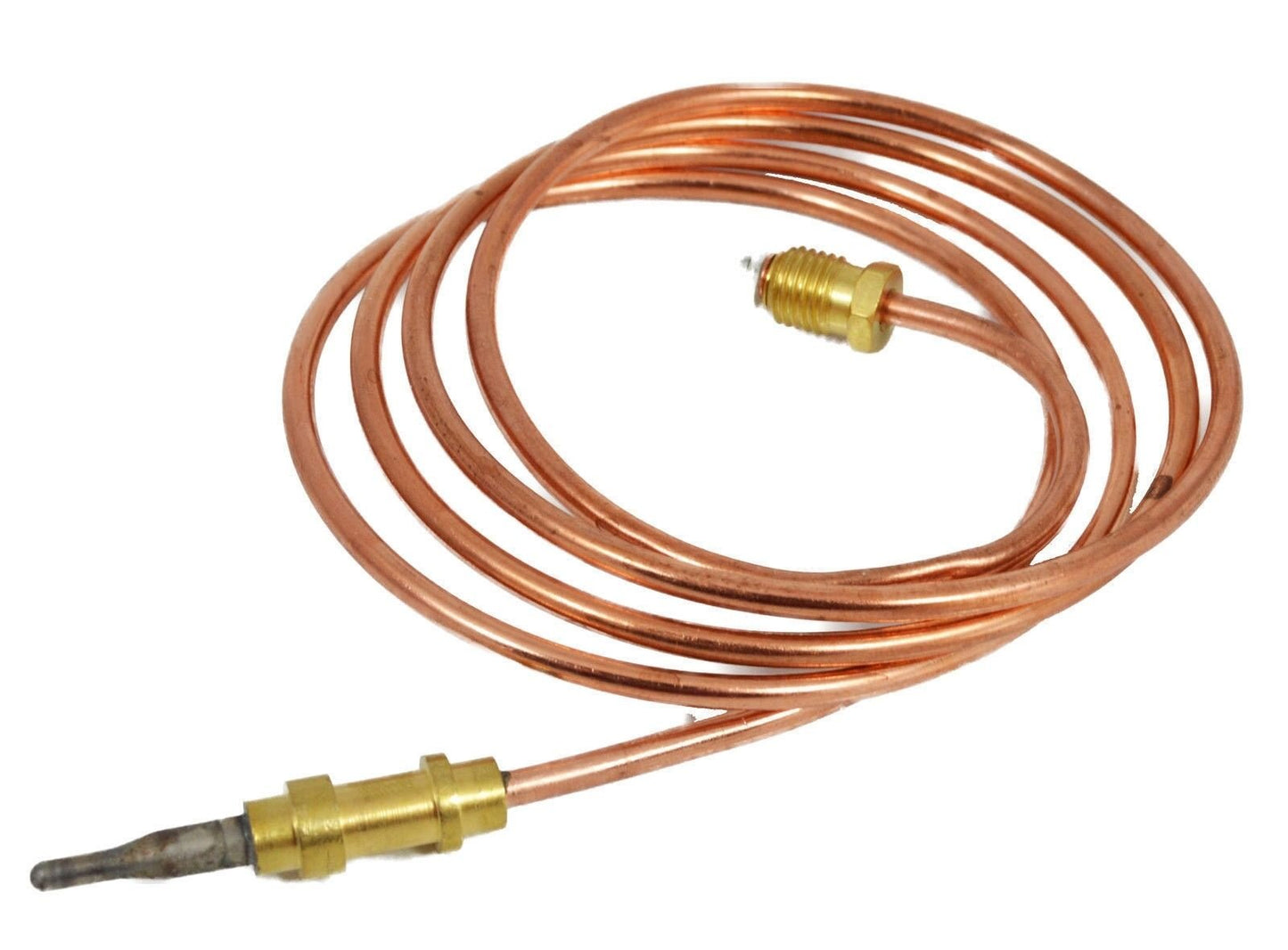

THERMOCOUPLE 39" LONGREPLACES PART DESA NUMBER  098514-01
Also sold as
098514-01,09851401,098514 01, 71-031-1020, 710311020,71 031 1020, lowes TC, 25097,TC,
The 098514-01 Thermocouple will fit the following Comfort Glow Vent-Free wall heater model numbers:CGCF26T, CGCF26TNA, CGCF26TP, CGCF26TPA, CGN6, CGN6L, CGN6LA, CGN10, CGN10A, CGN10L, CGN10LA, CGN10R, CGN10RL, CGN10RLA, CGN10T, CGN10TL, CGN10TLA, CGN12, CGN12A, Charm Glow, CGL250TE-C Series Heaters The 098514-01 Thermocouple will fit the following Blue-Flame Vent-Free Natural Gas Heater wall heater model numbers:CGN18, CGN18A, CGN18B, CGN18C, CGN18T, CGN18TA, CGN18TBProCom and Cedar Ridge Units:
SSN18TB, SSL18TB, MD200TBE, CGD280TA, CGD280 TA
The 098514-01 Thermocouple will fit the following Comfort Glow Vent-Free Natural Gas Compact Fireplace model numbers: CGN18TLB, CGN18TL, CGN20
CGN20LCGN20BCGN20LBCGN20TCGN20TLCGN20TBCGN20TLBCGN28TCGN28TACGN28TBCGN30CGN30CCGN30DCGN30TCGN30TLCGN30TBCGN30TLB
CGP6CGP6LCGPGLACGP10CGP10LCGP10LACGP10RCGP10RLCGP10RLACGP10T,CGP10TLCGP10TLACGP11CGP11ACRP16TCGP18CGP18ACGP18BCGP18CCGP18TCGP18TACGP18TBCGP18TBLCGP18TLCGP20CGP20LCGP20BCGP20LBCGP20TCGP20TLCGP20TBCGP20T

Installation

Installing 098514-01 and other similar thermocouple kits.
   1. Turn gas off to appliance.   2. Remove front panel from heater by removing the screws holding front panel to the cabinet.   3. Remove thermocouple wire from gas valve base by turning ?tting counter clockwise with a 5/16" wrench (see Figure 1).   4. Locate the pilot assembly and, with a Phillips screwdriver, remove screw that holds the bracket for the thermocouple and igniter (see Figure 2).   5. Remove thermocouple and replace with new thermocouple.   6. Replace bracket and tighten screw.   7. Finger tighten thermocouple wire ?tting at base of gas valve. With 5/16" wrench, turn ?tting 1/4 turn clockwise.   8. Replace front panel on heater.   9. Turn gas on to appliance.
Figure 1: Thermocouple Connection to Gas Valnes
Figure 2: Pilot Assembly
WARNING !!!ONLY QUALIFIED SERVICE PERSONEL SHOULD ATTEMPT TO REPAIR GAS EQUIPMENT
