VALVE, GAS (Universal orifice hood,#72-#49) CECILWARE F196A F000F F000A

GAS VALVE UNIVERSAL
• Universal orifice hood• Natural or LP gas• For Anets broiler models BR-34-3, GTC• Anets no. P8900-27• For Bakers Pride char broilers model series 50, CH,GG, SGBR, XX• Bakers Pride no. R3032A• For Garland ranges• For G280 open or hot top (prior to 5/16/89 and serial no. 280500), G30Aopen or hot top, 40/50 series top burner (LP gas) • Garland nos. 1046296, 1085900, 1087696, 1087697, 4417-57, 9005597,9005599, G4447-57F• For Rankin-Delux char broiler models TB-825, TB-836• Rankin-Delux no. TB-11• For Vulcan Hart griddles• For model 100L-77R• Vulcan Hart nos. 104076ALL, 107076ALN• For Vulcan Hart ovens and ranges• Vulcan Hart nos. 104076ALL, 107076ALN

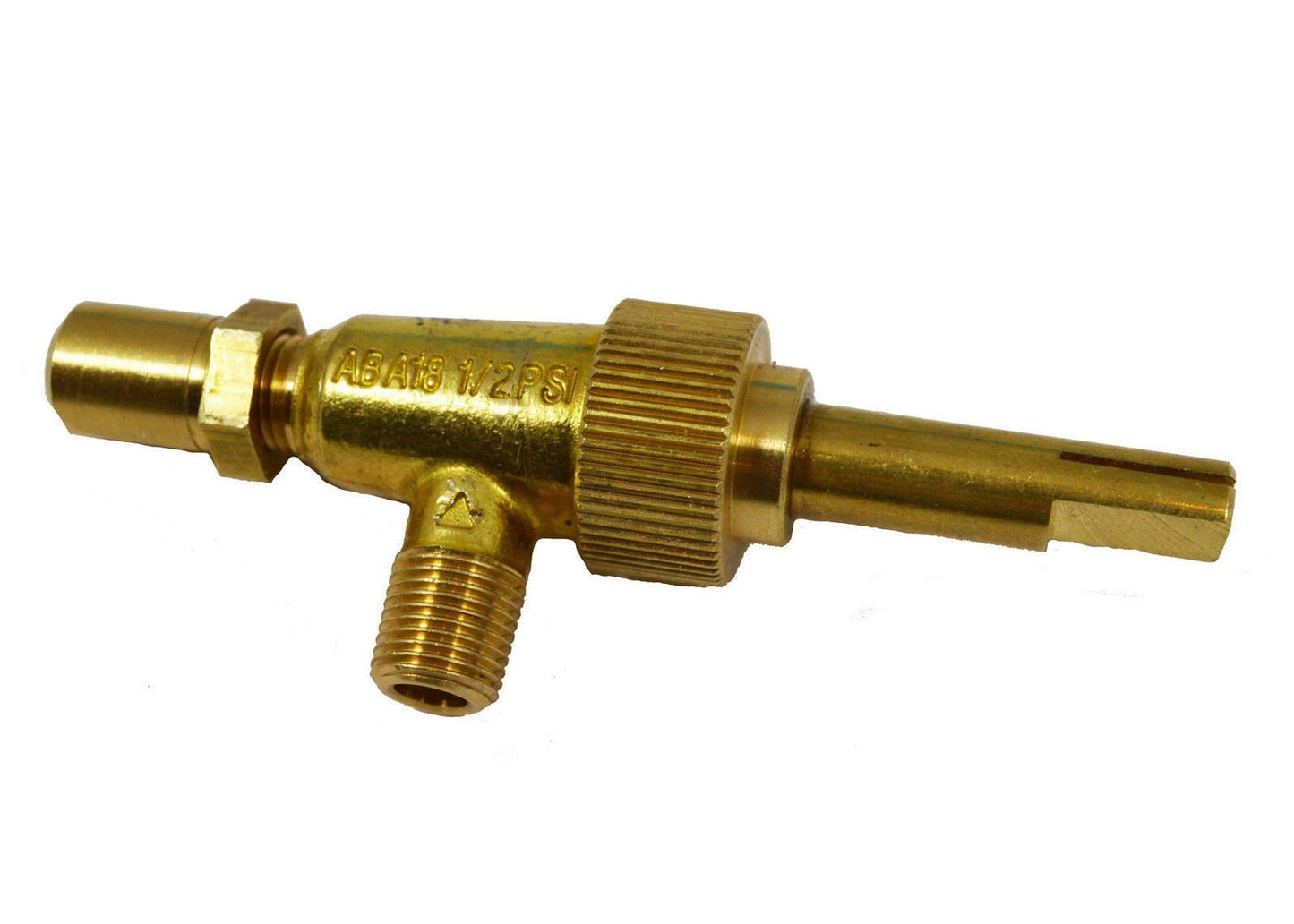

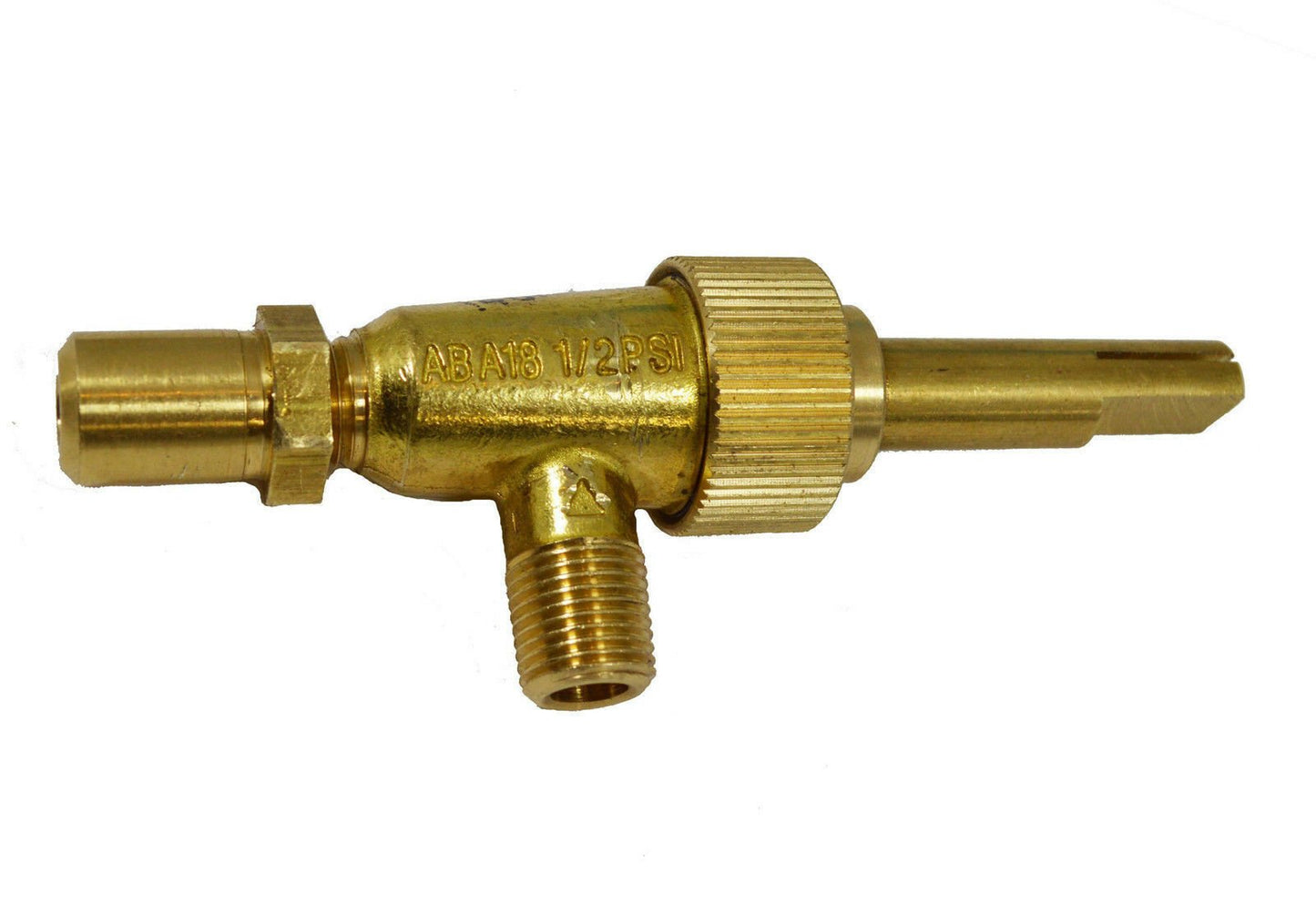

*see images. could have diffrent apperance but functionaly the same.
Description
BURNER VALVE[ 1/8" MPT X 3/8"-27, #42 ORIFICE ][ ROTATION OFF/ON][STEM POSITION DOWN] [STEM SIZE .240"][CTR INLET TO END OF STEM 2-1/8"] [ 90 DEGREE ANGLE],[ COMES WITH ORIFICE #42 ]CNTR OF STEM TO BOTTOM OF INLET 7/8",CECILWARE BROILER BC, CCBUS RANGE BROILER BBQ- 48,60,72, C-HDS-A, RBAGRILL/GRIDDLE PERFORMER II, PERFORMER PF, RGTAHOTPLATE RHPA

Replaces the following Manufacturer's Products
OEM Numbers are used for reference only,



OEM Name
OEM #

CECILWARE
F196A

CECILWARE
F000A

CECILWARE
F000F

GARLAND
227053

GARLAND
227058

FOR AN ORIFICE HOOD DRILLED TO SIZE FOLLOW THIS LINK
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&Item=371049103781
