Bakers Pride M1006X M1038X THERMOSTAT LOW-500 FDTO-1 SOUTHBEND 1010401 1010499

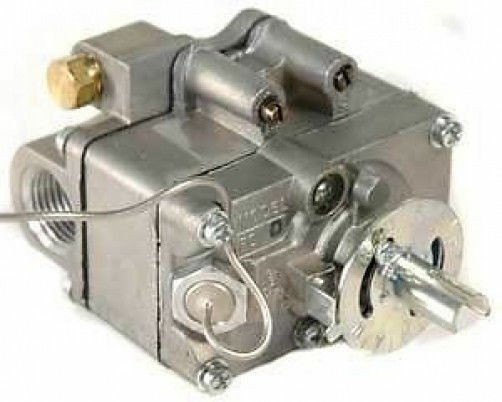

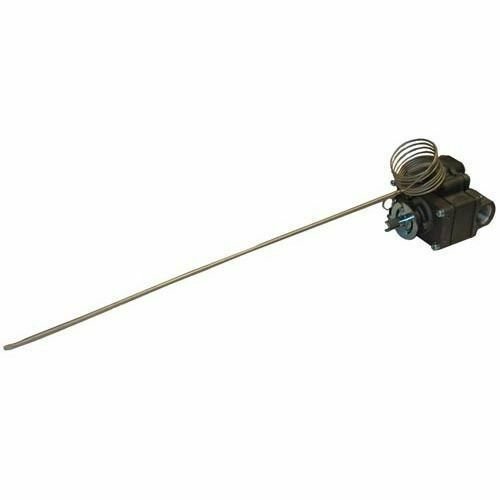

FDTO Body Type 1 Thermostat
[ FDTO-1 ] [ TEMP LOW-500 ] [ BULB 3/16" X 14-3/4" ][ CAP 54" ] [ GAS 1/2" FPT IN/OUT( SIDE ) F & E ][ DIAL 150-550 ] OR [LOW-250-550 ]BAKERS PRIDEOVEN101, 104, 201, 204, 301, 304, 401, 404.SOUTHBENDGRILLT-121-0/1, T-161-0/1, T-1361, T-1421-0/1.OVEN136 & 142 & W/SUFFIX -0 & -1.


Replaces the following Manufacturer's Products
OEM Numbers are used for reference only,



OEM Names
OEM #

BAKERS PRIDE
M1006X

BAKERS PRIDE
M1038X

SOUTHBEND
1010401

SOUTHBEND
1010499
PART REFERENCE INFO

BAKERS PRIDE

M1006X
SOUTHBEND

1010499
MODEL REFERENCE INFO

BAKERS PRIDE MODELS:

307
BAKERS PRIDE BAKE & ROAST OVEN MODELS:

101
104
201
204
301
304
401
404

LENGTH

14 3/4" BULB
54" CAPILLARY
INLET

1/2" NPT
OUTLET

1/2" NPT
OUTER DIAMETER

3/16" BULB
WEIGHT

1.07 lb
TEMPERATURE RANGE

LOW 200 TO 550 F
TYPE

FDTO-TYPE
