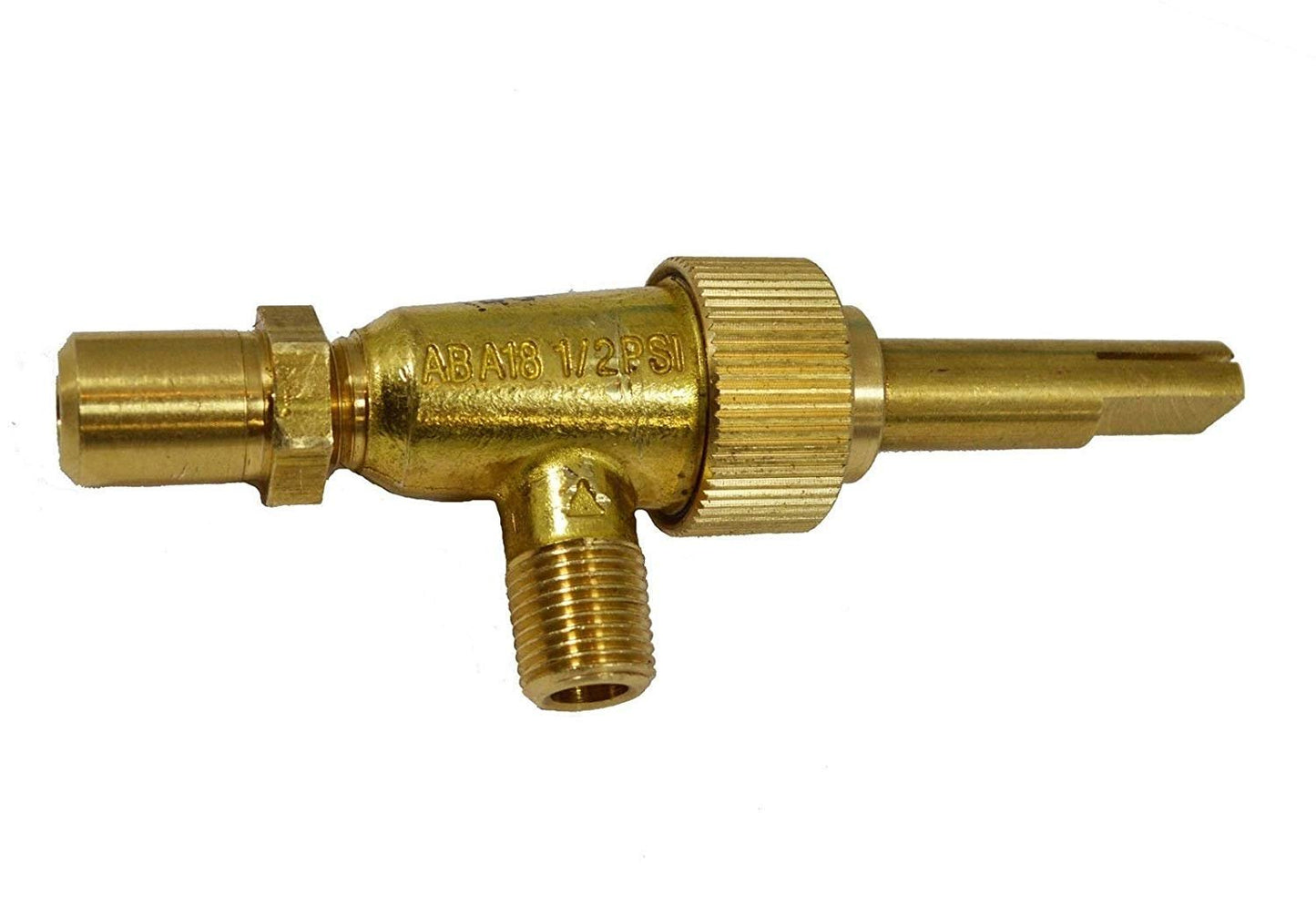

DMI VALVE, GAS (Universal orifice hood,#72-#49) GARLAND 227058 227053

For Rankin-Delux char broiler models TB-825, TB-836, Rankin-Delux no. TB-11, For Vulcan Hart griddles, For model 100L-77R, Vulcan Hart nos. 104076ALL, 107076ALN For Vulcan Hart ovens and ranges Vulcan Hart nos. 104076ALL, 107076ALN *see images. could have diffrent apperance but functionaly the same. Description BURNER VALVE [ 1/8" MPT X 3/8"-27, #42 ORIFICE ][ ROTATION OFF/ON] [STEM POSITION DOWN] [STEM SIZE .240"] [CTR INLET TO END OF STEM 2-1/8"] [ 90 DEGREE ANGLE], [ COMES WITH ORIFICE #42 ] CNTR OF STEM TO BOTTOM OF INLET 7/8", CECILWARE BROILER BC, CCB US RANGE BROILER BBQ- 48,60,72, C-HDS-A, RBA GRILL/GRIDDLE PERFORMER II, PERFORMER PF, RGTA HOTPLATE RHPA

• For Anets broiler models BR-34-3, GTC, Anets no. P8900-27
• Natural or LP gas
• For Bakers Pride char broilers model series 50, CH,GG, SGBR, XX
• Bakers Pride no. R3032A, For Garland ranges, For G280 open or hot top (prior to 5/16/89 and serial no. 280500), G30Aopen or hot top, 40/50 series top burner (LP gas)
• Garland nos. 1046296, 1085900, 1087696, 1087697, 4417-57, 9005597,9005599, G4447-57F
