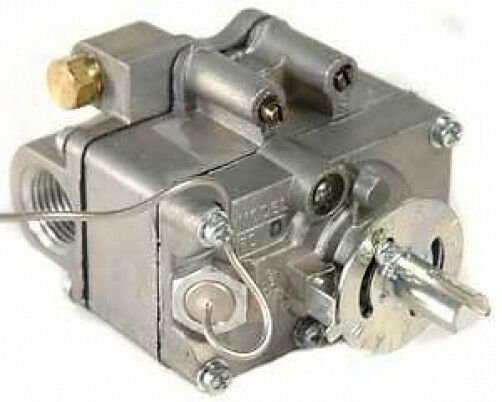

FDO OVEN THERMOSTAT JADE RANGE 4615300100 SOUTHBEND 1170193 1010302 1010396

ROBERTSHAW GENERAL PURPOSE FDOTHERMOSTAT150° to 550°F temperature range• FDO type• 1/2" NPT side inlet and outlet• 48" capillary length• 3/16" X 14 3/4" bulb• For Franklin Chef model series GDO• For Garland convection oven model series G2000• Garland and US Range 1017514, 1017591, 1017599, 1019400, 1019436 • For Southbend broiler models 32BC, 32-40C• For Southbend deck pizza oven models 17, 112, 177• For Southbend sectional range models 436A, 1364B, C, D;1424B, C, D, with standard ovenSouthBend 1010302, 1010396, 1010397, 1010398, 1010399, 1170193• Hobart 335553-1 • Dial not included (see KNB-01013 )




Specifications






Ship Weight
1.96 lbs

Temperature
150

Gas In (NPT)
1/2

Gas Out (NPT)
1/2

Bulb
3/16 X 14 3/4




Description
[ FDO-1 ] [ TEMP 150-550 ] [ BULB 3/16" X 14-3/4"][ CAP 48" ][ 1/2" NPT IN/OUT (SIDE) F & E] NO DIAL.FRANKLIN CHEF OVEN SERIES: GDO (EXCEPT GDO-232).GARLAND OVEN SERIES: G2000.JADE OVEN WHERE APPLICABLESOUTHBEND BROILER 171-40 & -40A/B/C/D, 32-40OVEN CONV: V10 & 20; VS10 & 20.DECK: 17, 112, 177.RANGE 136, 142, 1228, 1361, 1362, 1363, 1364, 1421, 1422,1423,1424, T1361, T1421. 1363, 1364, 1421, 1422, 1423,1424, T1361, T1421.


Replaces the following Manufacturer's Products
OEM Numbers are used for reference only,




OEM Name
OEM #

FRANKLIN CHEF
146517

GARLAND
1017591

GARLAND
G01920-01

JADE RANGE
4615300100

SOUTHBEND
1170193

FRANKLIN CHEF
142970

FRANKLIN CHEF
144720

GARLAND
1017500

GARLAND
1017514

GARLAND
1017599

GARLAND
1019400

HOBART
335553-1

SOUTHBEND
1010302

SOUTHBEND
1010396

SOUTHBEND
1010397

SOUTHBEND
1010398

SOUTHBEND
1010399
MODEL REFERENCE INFO

FRANKE REFRIGERATION BROILER MODELS:

GDO SERIES
GARLAND MODELS:

G2071
G2121
G2161
G2771
GARLAND CONVECTION OVEN MODELS:

G2000 SERIES
SOUTHBEND BROILER MODELS:

32-40C
32BC
SOUTHBEND BROILER WITH BASE OVEN MODELS:

171-40D-4
SOUTHBEND OVENS & RANGES MODELS:

F-10
1364B
1364C
1424B
1424C
1424D

Serial #: OLD STYLE
Serial #: WITH STANDARD OVEN
SOUTHBEND PIZZA OVEN MODELS:

112
17
177
SOUTHBEND RANGE MODELS:

1364D

PRODUCT SPECIFICATIONS

LENGTH

14 3/4" BULB
48" CAPILLARY
INLET

1/2" NPT
OUTLET

1/2" NPT
OUTER DIAMETER

3/16" BULB
WEIGHT

1.12 lb
TEMPERATURE RANGE

150 TO 550 F
TYPE

FDO-TYPE
