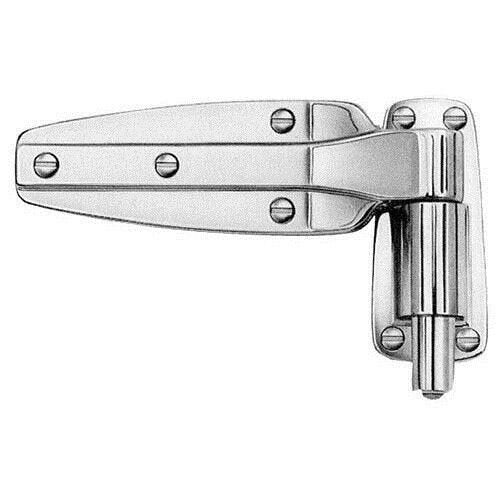

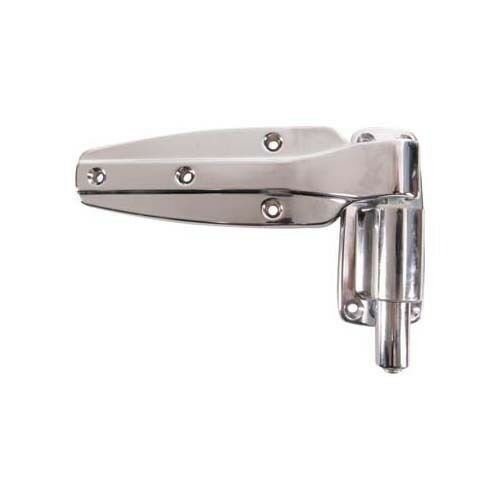

KASON 1248 SPRING ASSIST CAM LIFT HINGE CHROME 1 3/8 OFFSET MOUNT 10 1/8 long

img{max-width:100%}SPRING ASSISTED CAM LIFT HINGES
This product is manufactured by Kason ®
1 3/8 OFFSET Chrome plated• Kason no. 1248
REVERSIBLE SPRING ASSISTED CAM LIFT HINGE, 10-1/8" WIDE ODTO REVERSE REMOVE CAP AND PUSH OUT CAM, REPLACE CAMON OTHER SIDE OF STRAP AND REPLACE CAP.STRAP HAS A HEX HOLE IN IT WHICH ACCEPTS THE STEM FROM THEFLANGE
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only,



OEM Names
OEM #

KASON
11248000024

KASON
1248-000024

KASON
1248000024

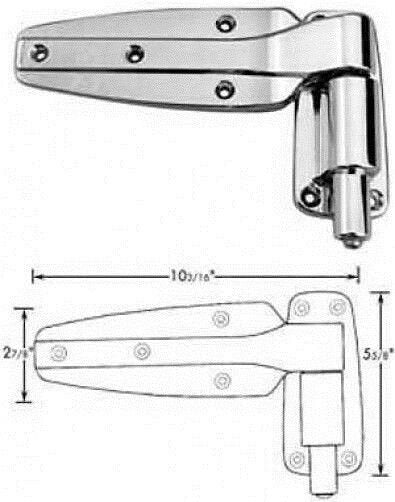

PRODUCT SPECIFICATIONS

LENGTH

10 3/16" OVERALL
259 mm OVERALL
HEIGHT

5 5/8" BASE
143 mm BASE
WIDTH

2 7/8" STRAP
73 mm STRAP
PLATING

CHROME-PLATED
WEIGHT

3.08 lb
OFFSET

1 3/8 offset MOUNT
