PLATE CASTER 5" W/BRK BLACK Frymaster 810-0327 CHG CMP1-5BBN CRESCOR 0569-306-B

CASTER, PLATE (5, W/BRK,BLK)\

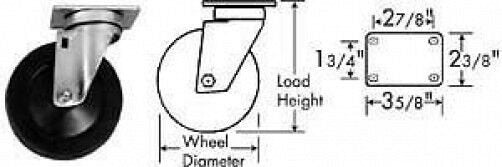

5” (12.7cm) Plate Caster• With brake• For Frymaster fryer models EPH14, EPH17, GF14, GF40, H14, H17• 2-3/8” x 3-5/8” (6cm x 9.2cm) plate• Black• Frymaster nos. 810-0327, 810-0357




Specifications







Ship Weight
3.50 lbs

Accepts Axle Bolt
3/8

Tread Width
1 1/4

E
1 3/4

D
2 3/8




Description
[5"DIA] X [1-1/4" WIDE], PLATE MOUNT CASTER, W/BRAKE(3/8" AXLE), (1/2" BORE), (1-1/2" HUB WIDTH)TREAD TYPE-FLAT, DELRIN BEARING, 300 LBS(PLATE SIZE 2-3/8" X 3-5/8") AND (1-3/4" X 3" HOLE CENTERS)(LOAD HEIGHT-6")(WHEEL ONLY # 28-1311CRES-COR 137, 151, 339FRYMASTER FRYER 1824/2424G, 1824E, 1824G, 2424E,2424G, 2836with Float Switch, 8BC, 8C, 8SMS, BID80, D20, D50, D50G,D50GDD, D60, D80, FBCR18, FBKR18, FBR18, FBRA18, FE155,FM35, FM45, FM47, FMCFE, FMCFEC, FP128, FP136, FP236, FP28,FP36, FPD565, FPD65, FPD665, GF14, GF40, H14, H17, H22,HD60, J3F, J65X, JCFX, KJ3FC, MJ35, MJ45, MJ47, MJCF,MJCFE,MJCFEC, PMJ35, SM20, SM220, SM35, SM40, SM50, SM60, SM80,SR114E, SR38, SR42, SR52, SR62, SinBaD, SinBaD II, SuperRunner 52, WFP347ECSE

Replaces the following Manufacturer's Products
OEM Numbers are used for reference only,



OEM Names
OEM #

CHG (Component Hardware Group)
CMP1-5BBN

CRESCOR
0569-306-BK

CRESCOR
0569-001-B

DCS (Dynamic Cooking Systems)
18022-1

FRYMASTER
2799

FRYMASTER
8100357

PRODUCT SPECIFICATIONS

WIDTH

1 1/4" WHEEL
3/8" AXLE BOLT
COLOR

BLACK
MATERIAL

PLASTIC HUB
RUBBER WHEEL
WEIGHT

2.93 lb
SCREW CENTERS

1 3/4"
2 7/8"
CASTER TYPE

PLATE
SWIVEL
CASTER BRAKE

Y
WHEEL DIAMETER

5"
127 mm
LOAD HEIGHT

6 1/4"
159 mm
LOAD CAPACITY

1000 lb PER SET OF 4
454 kg PER SET OF 4

PART REFERENCE INFO
COMPONENT HARDWARE GROUP


C21-1051
DELFIELD

3234161
FRYMASTER

810-0327
810-0357
826-1118
MODEL REFERENCE INFO

DEAN FRYER MODELS:

SCFD60 WITH UNDER FRYER FILTER MACHINE
SM150GNS
SM180
SM20G
SM22
SM250GNS
SM50G
SM50GMS
SM5020
SM80G
DELFIELD MODELS:

BW18672PTBM
CTB8146-NB
CTB8160-NB
CTB8175-NB
Delfield
F17C110
F17C52
F17C60
F17C68
F17C78
F17C87
F17C95
F17DD32
F17DD46
F17DD54
F17DD64
F17DD73
F17DD81
F17DD96
F17FC60
F17FC76
F17FC84
F17FC94
F17FR48
F17FR58
F17FR66
F17FR76
F17OS
F17R102
F17R44
F17R52
F17R60
F17R70
F17R79
F17R87
F18RC48R
F2660
F2694
F2748
F2776
F28102
F28110
F2844
F2852
F2856
F2862
F2875
F2880
F2887
F2899
F29110
F29110C
F2952
F2952C
F2956
F2956C
F2962
F2962C
F2975
F2975C
F2978
F2978C
F2980
F2980C
F2987
F2987C
F2996
F2996C
F2999
F2999C
KH2-NU
KH3-NU
KH5-NU
SCF-36
SCF-74
SCFT-36
SCFT-50
SCFT-60
SCFT-74
SCM-36
SCM-50
SCM-60
SCM-74
SCSC-36
SCSC-50
SCSC-60
SCSC-74
SCSC-96
18SC39R
18648-BUC
18648-PTB
18648PTB
18660-BUC
18660-PTB
18672-BUC
18672-PTB
18691-BUC
18691-PTB
18699-BUC
18699-PTB
18699BUC
18699PTB
6151
DELFIELD DRAWERS AND/OR REACH-IN MODELS:

V18670-PTB
28102
DELFIELD ICE CREAM FREEZER MODELS:

13WC32R
DELFIELD LOW-PROFILE REFRIGERATED BASE EQUIPMENT STAND MODELS:

F2952C
DELFIELD PREP TABLE MODELS:

18MR44
DELFIELD REACH-IN REFRIGERATOR MODELS:

18MC68R
DELFIELD REFRIGERATED BASE EQUIPMENT STAND MODELS:

F2956C
DELFIELD REFRIGERATOR MODELS:

6000XL SERIES
DELFIELD WORK TOP REFRIGERATOR MODELS:

18WC72
FRYMASTER MODELS:

BID80
BIH152
BIH252
BIH352
BIH452
BIH52
BIH552
BIPH14
BIPH252/255
BIPH352/355
BIPH452/455
BIPH52/55
BIPH552
D20
D50
D50G
D50GDD
D60
D80
FBCR18
FBKR18
FBRA18
FBR18
FE155
FMCFE
FMCFEC
FM35
FM45
FM47
FPD565
FPD65
FPD665
FPPH355-SC
FPPH355CSD
FPPH455-SC
FP128
FP136
FP236
FP28
FP36
GF14
GF40
HD60
H22
H50
H55
JBIH252
JCFX
J3F
J65X
KJ3FC
MH152
MH252
MH352
MH452
MH52
MH552
MJCF
MJCFE
MJCFEC
MJ35
MJ45
MJ47
MPH14
MPH152/155
MPH252/255
MPH352/355
MPH452/455
MPH52/55
PH155CSD
PMJ35
SinBaD
SinBaD II
Super Runner 52
SM20
SM220
SM35
SM40
SM50
SM60
SM80
SR114E
SR38
SR42
SR52
SR62
WFP347ECSE
17CSC
1824/2424G
1824E
1824G
2424E
2424G
2836 with Float Switch
8BC
8C
8SMS
FRYMASTER FRYER MODELS:

EH1721
EPH14
EPH17
FM345 WITH UNDER FRYER FILTER MACHINE
FPH317CSD
FPH350CSD
GF14
GF40
H14
H17
MJCF
MJCFE
MJCFESD
MJH350CSD
MJH50CSD
MJ345E
MJ35
MJ45-SD
MJ45E
FRYMASTER PASTA COOKER MODELS:

GBC
GSMS
FRYMASTER RETHERMALIZER MODELS:

FBCR18
