ROBERTSHAW THERMOSTAT (250-550,BJ,W/DIAL)  Vulcan Wolf 10451

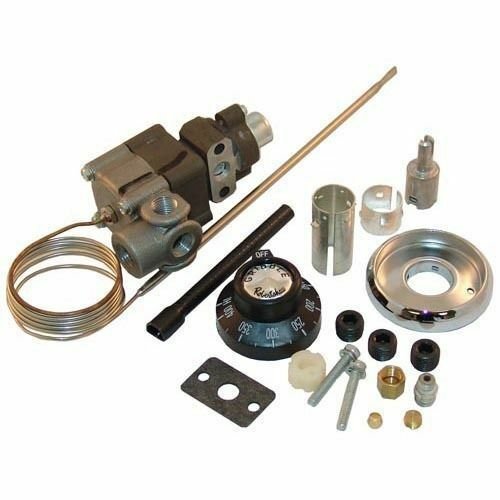

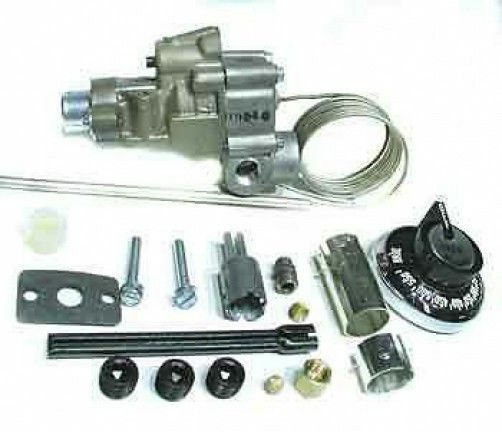

REPLACEMENT ROBERTSHAW BJWACOMMERCIAL THERMOSTAT KITS ,Designed for use in commercial ovens and griddles. Can be mounted in any of four manifold positions. Kit will replace most BJ and BJWA commercial thermostat installations.Oven thermostat kit• 250° to 550°F temperature range• 1/4" NPT outlet• 48" capillary• 3/16 x 11 5/8" bulb• For Franklin Chef model series GR, GR A, GR AX, GRC withserial nos. 1000000 to 1008568, 1017255 and after• Franklin Chef nos. 143210, 147573, 147906, 147912• For Vulcan Hart oven• Vulcan Hart nos. 108823-4, 108823-6, 408823-4, 408823-6• For Wolf R models ovens and ranges• Wolf no. 10451
Install instructions PDF




Specifications






Ship Weight
1.82 lbs

Size (NPT)
1/4

Temperature
250

Bulb
3/16 X 11 5/8

Pilot Fitting
3/16" CCT




Description
VIEWED FROM REAR:SEE ADDL IMAGE "OUTLET POSITIONS"[ BJWA KIT W/ 3/16" CCT PILOT [ TEMP 250-550 ] [ BULB3/16" X 11-5/8" ] [ CAP 48" ] [ OUT 1/4" FPT "A,B,C,D,"][ ROTATION 0 DEGREES ] [ INCLUDES DIAL & BEZEL, STEMADAPTERS, GASKET, SCREWS ]DIAL W/ ADAPTER]FRANKLIN CHEF OVEN GR(10,11,12,13,14,16-0,17,22,410,415,416,426).SERIES: GRA & GRAX & GRC WITH S/N 1000000 TO 1008568&1017255 & AFTER.MONTAGUE CHINESE BBQ OVEN 28CBSF, MONTAGUE II "R"OVEN 28CBSF CHINESE BBQ OVEN. SERIES: MONTAGUE II R.US RANGE OVEN SERIES PERFORMER IIVULCAN/WOLF OVEN SERIES: 59, 64.(70 AFTER 11/74).


Replaces the following Manufacturer's Products
OEM Numbers are used for reference only, .



OEM Name
OEM #

FRANKLIN CHEF
147573

GARLAND
227054

MONTAGUE
3376-6

VULCAN HART
408823-3

VULCAN HART
408823-4

FRANKLIN CHEF
143210

FRANKLIN CHEF
147906

FRANKLIN CHEF
147907

FRANKLIN CHEF
147912

IMPERIAL
106-3

MONTAGUE
03376-6

MONTAGUE
B40

VULCAN HART
10451

VULCAN HART
108823-3

VULCAN HART
108823-4

VULCAN HART
117424-G1

VULCAN HART
710451
