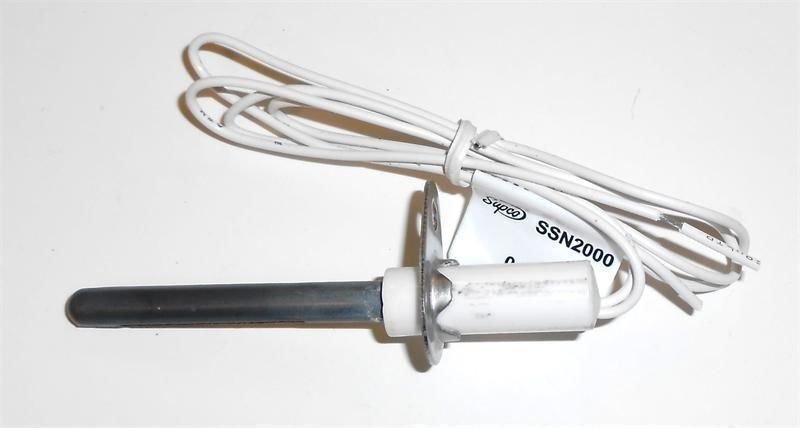

Supco SSN2000 Silicon Nitride Universal Furnace Ignitor Kit 120V

img{max-width:100%}SSN2000 UNIVERSAL IGNITER

Economic design
CSA approved
Replaces over 100 igniters
Life rated to 50,000 cycles
Silicon Nitride technology for strong, durable operation and performance
Easy installation: kits include igniter, mounting brackets, hardware, instructions & cross reference
Universal replacements, reduces SKU’s
Replaces hundreds of OEM & competitors igniters
Longer igniter life (non-porous construction)
Low energy consumption uses half the power of Silicon Carbide igniters
Superior gas lighting ability, faster time to temperature response than Silicon Carbide igniters
No need for power supply module
1 year warranty
Applications(Various types of gas fired equipment)

Furnaces
Boilers
Unit Heaters
Water Heaters
Pool Heaters
Note: Silicon Nitride HSI igniters cannot be used in direct sense applicationsSpecificationsOperating Voltage 120 VAC (+/-10-15%)Time to 2102°F (1150°C) <17 seconds @ 120 VACSteady Temperature 2156°F-2426°F (1180°C-1330°C) @ 120 VACCold Resistance 15-30 Ohms @ 77°F (25°C)Steady Current 1.3 Amps (+/-0.3 Amps @ 120 VAC)High Temperature Wire Leads 20 AWG UL10362 482F°Life Cycles >50,000SSN2000 Cross References



OEM
OEM P/N

American Appliance
217B

American Road Equip.
201W

Arcoaire
1380680


1096048

Armstrong
38322B001

 Carlin
871975

Carrier
LH33ZS001A


LH33ZS002

Claire Brothers
C238


C242

Coleman/Evcon
1474-0511


1474-051

Comfortmaker
1096048

 DMO/Olsen ECR Ind
20834

Dornback
271W

Ducane
20015201

Enerco Tech
10399

Goodman/Janitrol
10401009


b14010185

HB Smith
50018

Heil
1096048

Hupp Ind.
9050

ICP
1009604


1096048

Integra
6905332


3260618

Igniters Direct
HSIURK120V

LB White Co
120-07549

Majestic
75-92-104


75-92-105

Mars
67930


67931


67932

Metzger
201N


201W

Mor Flo
3200618


3200618

Nordyne
903110


105141000


632-0880


902661


902694


632-0770

Norton
201


201D


201J


201K


201L


201M


201N


201R


201W


201Y


271


271D


271M


271N


271NM


271P


271W


271Y

Perfection Swank
108803-G1

Raypack
600915

Rheem
62-22441-01


62-22668-93


62-22868-82

Roberts Gordon
90436600


90434300

Robertshaw/Uniline
41-402


41-403


41-404


41-405


41-406


41-407


41-408


41-409


41-410


41-411


41-412


41-413


41-414

Snyder General
1380654


1380672


1380680

Superior Fireplace
94851

Tempstar
1096048


1148245

Trane
3400339P01


B340039P01


B144676P01


B144676P02


IGN21


IGN26


IGN30


IGN34


IGN23

 Viessmann
9302-094

Wayne Home Equipment
62821-001


62821-002

 Weil McLain
511-330-139


511-330-193


511-330-190

White LB Co
120-07549

White Rodgers
21D64-2


767A-301


767A-303


767A-306


767A-310


767A-311


767A-350


767A-353


767A-354


767A-357


767A-361


767A-364


767A-365


767A-366


767A-370


767A-371


767A-372


767A-373


767A-374


767A-375


767A-376


767A-377


767A-382


767A-383


767A-384


F767-A357


F767-A361


F767-A365


F767-A366

Williamson
9050

York
025-27766-000


025-27774-000


025-29043-000


025-29050-000


025-32625-000


025-32626-000


025-33241-000


373-05342-700


473-12509-001
